Modular belts & components
Send a model, photo or drawing to discuss your selection.
ALTABELT · SHANGHAI, CHINA
Modular belts, chains
& line components.
We manufacture modular plastic belts, chains and components, with mold development and conveyor-system support. From individual spares to complete conveyor sections, we serve meat processing, logistics, tyre and corrugated-board applications.
FEATURED PRODUCTS
Find the belt for your application.
Flat top, flush grid or radius. Start with the surface and key dimensions, then confirm the selection for your product and operating conditions.
Discuss your requirement ↗
Have an existing belt or another brand's model? Include photos of the belt underside and sprockets so we can check the replacement fit.
Help identify my beltBEFORE YOU ORDER
Will it fit? Check first. Then order.
Choose your main concern to see what to check and what details to send before ordering.
YOUR QUESTIONS, ONE AT A TIME
REPLACEMENT BELTS & SPARES
The same pitch. But will the sprockets fit?
A similar shape and matching pitch do not guarantee compatibility with existing sprockets. If the model is unknown, send clear top, underside, edge and drive-sprocket photos with a ruler in view.
START WITH THESE DETAILS
- Existing belt photos, width and pitch
- Sprocket tooth count, shaft bore and markings
- Product weight, line speed and operating temperature
CONFIRM BEFORE ORDERING
- Can the original sprockets be retained?
- Exact belt width, length and rod material
- Any guide or transfer-gap adjustments
FIRST ORDERS & TRIALS
Replacing a short section? Do you need a complete belt?
Tell us whether you need loose modules, rods, sprockets or a complete belt. Minimum quantities and sample costs depend on the specification. A fit check and a continuous machine trial may need different quantities, so include the purpose.
DESCRIBE THE TRIAL
- Part or belt dimensions and quantity
- Dimensional check or machine trial
- Material, colour and delivery postcode
CLARIFY THE QUOTATION
- Confirm the minimum quantity for the specification
- Standard verification samples may be supplied without a product charge; freight is paid by the customer. Special samples and tooling are confirmed separately.
- Which components are included
MAINTENANCE & DELIVERY
Start with your installation date. Plan delivery backwards.
After approval of requirements, specifications and drawings, stock usually ships in 3 days; existing designs take 1–2 weeks to produce, and custom tooling takes 5–6 weeks, in calendar time. Sample transport, approval waiting time and bulk freight are additional. Share your latest arrival date to confirm the schedule. Lead times & urgent orders ↗
INCLUDE WITH YOUR INQUIRY
- Confirmed specification and quantity
- Delivery postcode or destination port
- Latest arrival date and maintenance window
CONFIRM THE SCHEDULE
- Stock availability and production lead time
- Expected dispatch date and transit time
- Transport method and delivery terms
EQUIPMENT & REPEAT ORDERS
“Same as last time” still needs a clear specification.
Keep the model, belt material, rod type and key dimensions in one specification. For reorders, provide the original order and drawing revision. Confirm food-contact documentation for the actual material and conditions of use.
MAKE REORDERS TRACEABLE
- Original order number and approved drawing revision
- Belt material, rod material and colour
- Belt width, length and agreed tolerances
AGREE ACCEPTANCE CRITERIA
- Dimensions and performance to check
- Required material or food-contact documents
- Inspection records required before dispatch
QUALITY ISSUES & REPLACEMENT PARTS
A problem with a part? Start with the details.
For faults or damage caused by quality issues within one year of leaving the factory, replacement parts are supplied free of charge; the customer pays freight and on-site labour. Report incorrect, missing or damaged goods with photos within 7 days of receipt. Once verified, we supply or replace the affected items and cover the related freight. After-sales terms ↗
INFORMATION FOR ASSESSMENT
- Order number, belt model and affected part
- Close-up photos and a short operating video
- Load, temperature and when the problem began
CONTACT ALTABELT
- Email: support@altabelt.com
- Phone: +86 173 2132 8732
- You can also use thecontact formto send the details.
APPLICATIONS
Start with what you convey.
Match the surface and components.
Meat needs drainage; board and tyres need stable support. Explain the process stage to guide the selection.

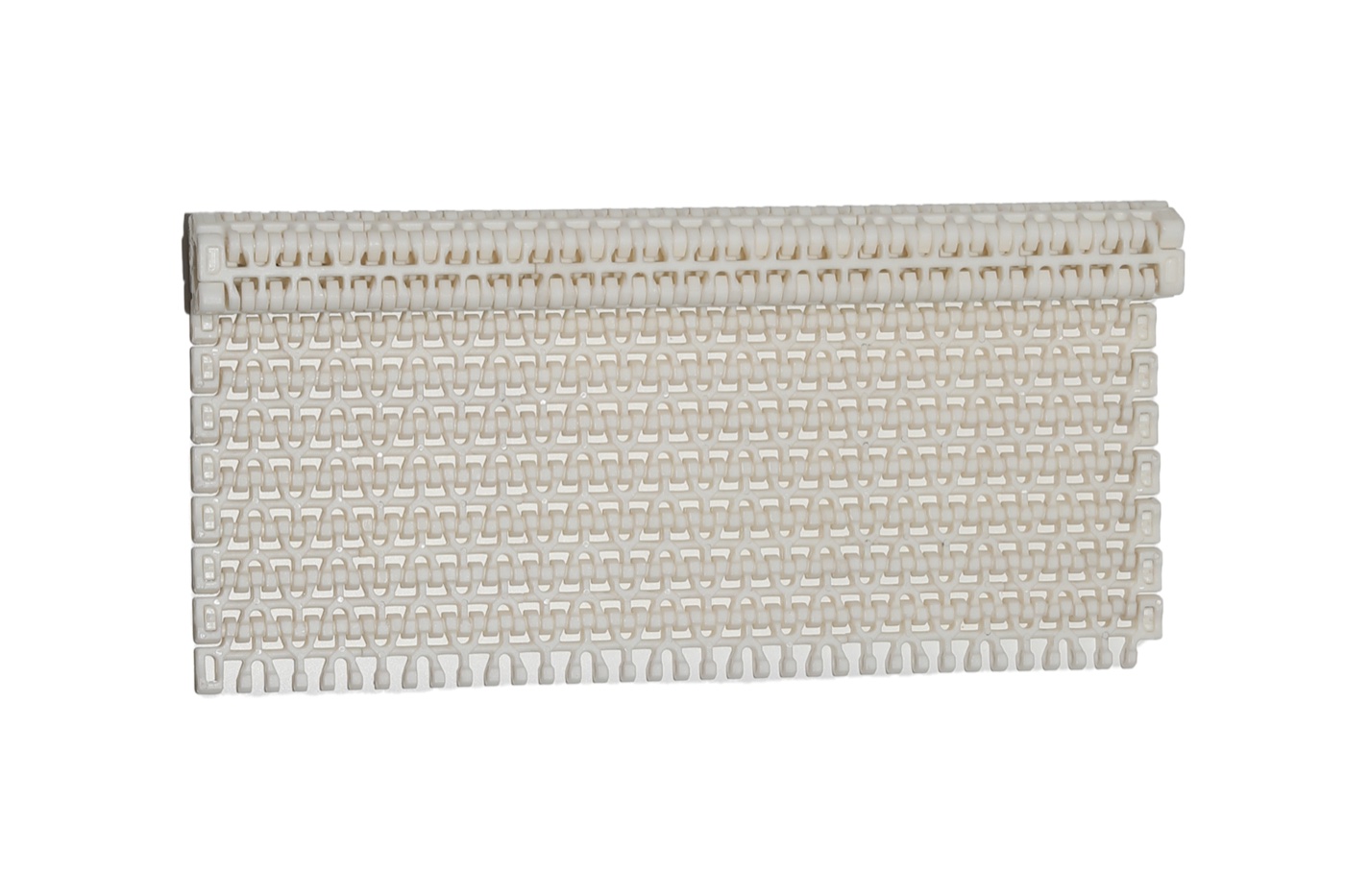

Meat processingCY-15200B
Small-pitch grid belt15.24 mm pitch · 28% open areaView specifications ↗

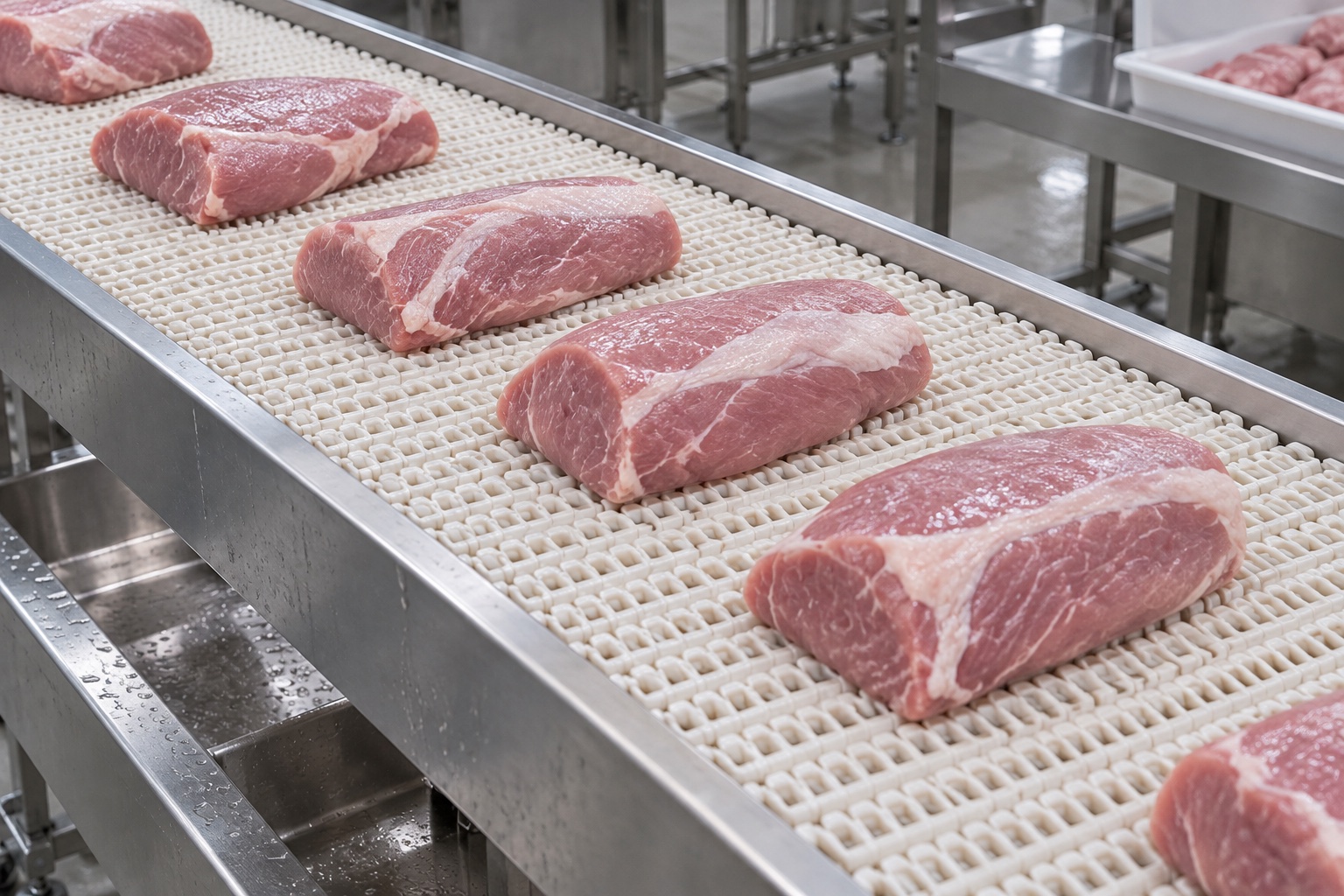

Support the meat. Let water drain.
Cut meat travels on a white grid belt with an open surface for drainage and airflow. Check openings against piece size, and select belt, rod and support materials for the cleaning conditions.
Small-pitch grid belt15.24 mm pitch · 28% open areaView specifications ↗
- Matching components
- Matching sprockets · Wear strips · Drip tray
- Selection checks
- Minimum piece size, cleaning temperature and chemicals, belt width and speed. Confirm food-contact documents for the actual material.

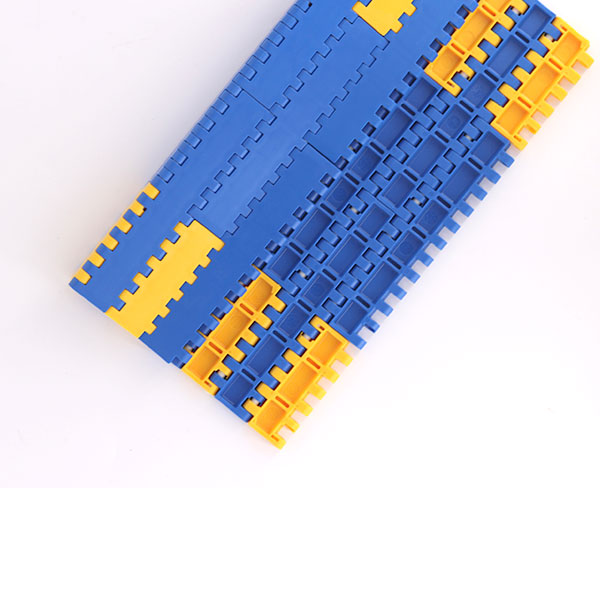

Corrugated boardCY-25409A
Flat-top modular belt for board25.4 mm pitch · 0% open areaView specifications ↗

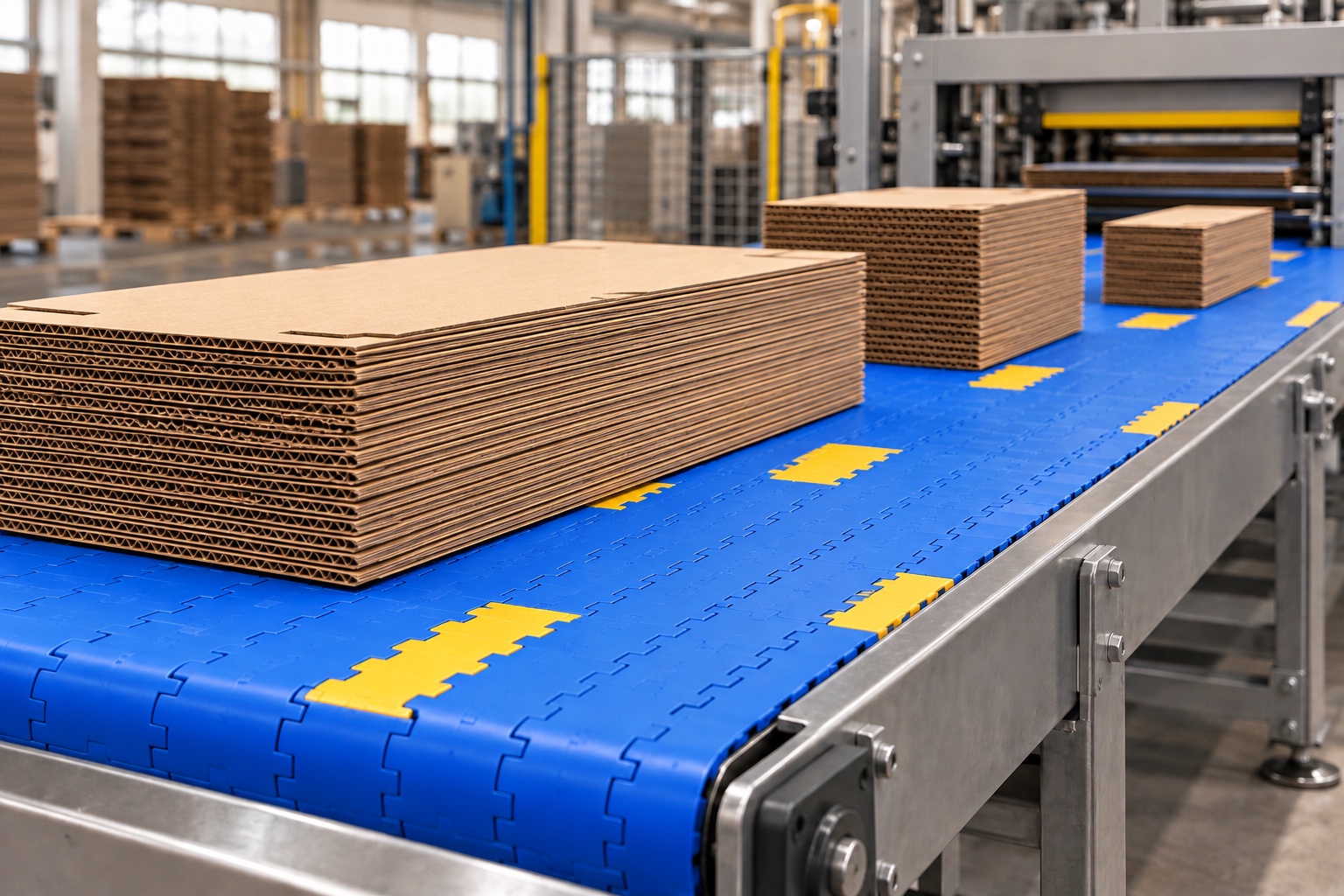

Support the stack. Connect the next process.
Blue flat-top modules form a wide surface for corrugated-board stacks. Check support and transfers against the bottom sheet, stack weight and equipment height to reduce unsupported gaps and unnecessary drops.
Flat-top modular belt for board25.4 mm pitch · 0% open areaView specifications ↗
- Matching components
- Matching sprockets · Under-belt support · Transfer parts
- Selection checks
- Stack length, width, total weight and bottom flatness, plus adjacent machine heights and transfer gaps.

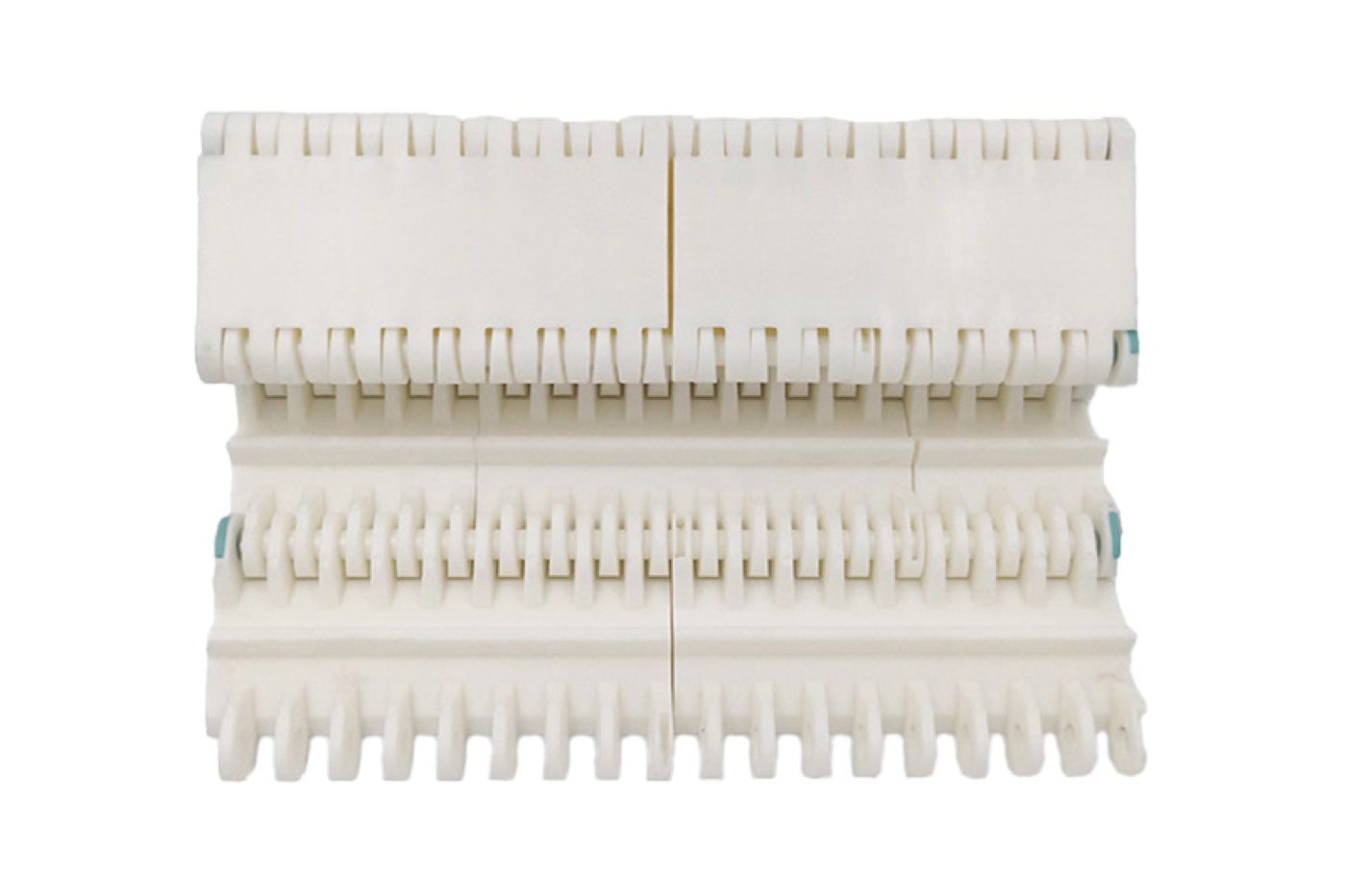

Tyre handlingCY-50801A
Flat-top modular belt50.8 mm pitch · 16 mm thicknessView specifications ↗

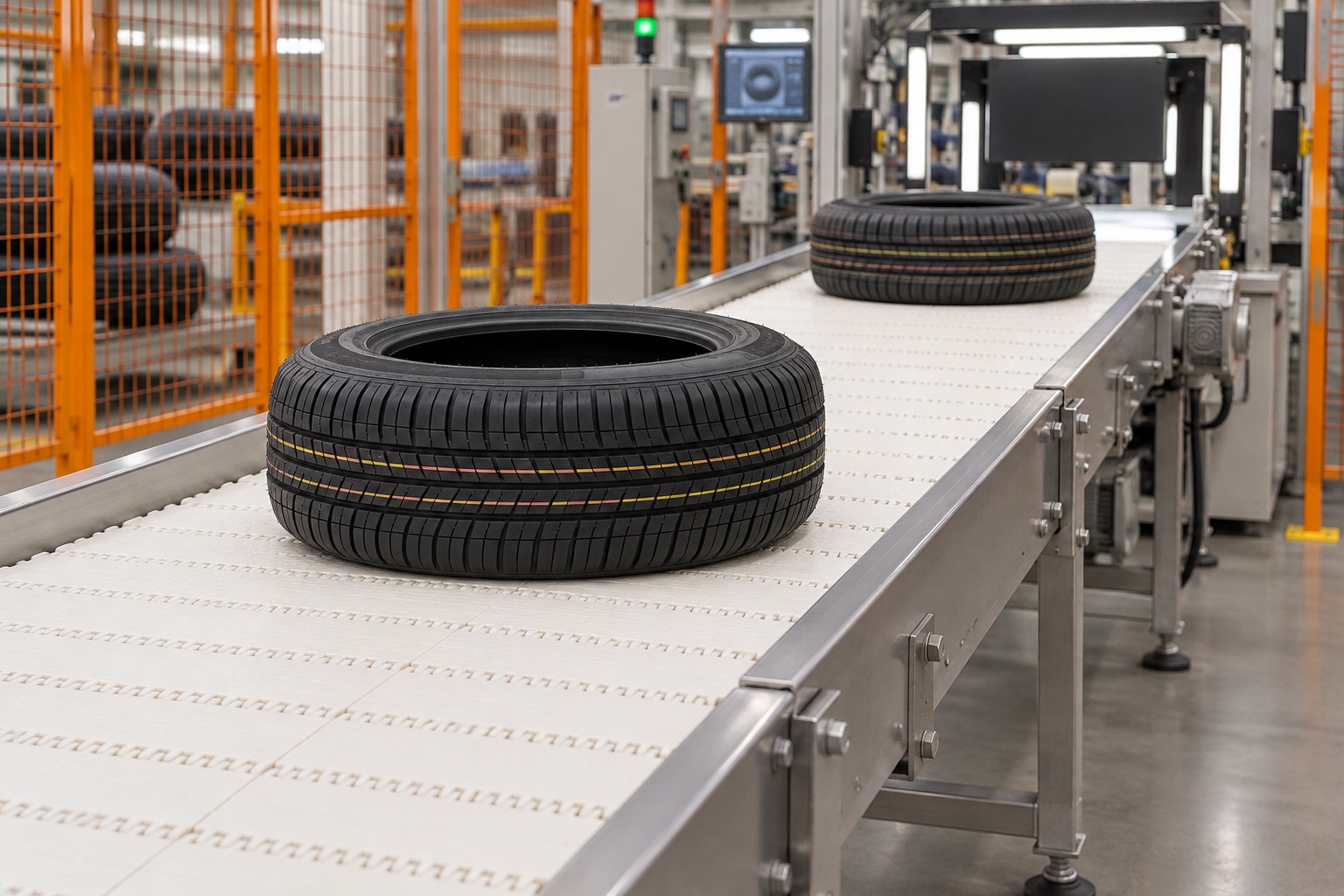

Finished tyres. Carried flat and straight.
A closed flat-top surface provides continuous support for cooled, finished tyres. Select material and support layout for tyre weight, entry temperature and operating speed.
Flat-top modular belt50.8 mm pitch · 16 mm thicknessView specifications ↗
- Matching components
- Matching sprockets · Wear supports · Side guides
- Selection checks
- Tyre diameter, weight and entry temperature; belt width, under-belt support and conveying cycle.
CONVEYING METHODS COMPARED
Three conveying methods.
Compare at a glance.
Compare maintenance, investment, load handling, curves and cleaning with high / medium / low ratings, then check each option's conditions of use.
| Comparison | Modular belts / chainsLinked modules · Sprocket driven | Conventional beltsContinuous surface · Various belt materials | Metal rollersGravity or powered · Spaced support |
|---|---|---|---|
| Maintenance / replacement | |||
| Initial investment | |||
| Heavy-load suitability | |||
| Curves / route flexibility | |||
| Wet areas / washdown |
How to read the ratings: Lower initial investment means a lower basic cost; for the other criteria, higher ratings indicate greater convenience or suitability. These are indicative only. Share the product, weight and route to check selection, components and maintenance costs.
Compare my application ↗ABOUT ALTABELT
From molds and components
to working conveyor lines.
Founded in 2010 in Songjiang, Shanghai, we manufacture modular plastic belts, chains and conveyor components. Mold development, matching components and technical support serve food, tyre, corrugated-packaging and warehouse conveying applications.
Explore our manufacturing & service ↗100lines
Lines designed and in operation
20+customers
Customers served
Food processing & packaging
Meat processing, packaged food and milk-powder cans
Jinluo · Qinqin · FeiheTyres & in-plant handling
Finished-tyre carrying, transfers and machine connections
Pirelli · Giti · Prinx Chengshan · BotoCorrugated board & equipment
Board support, stack conveying and packaging equipment
J.S. Machine · Heng Zong Intelligent
